Modern pharmaceutical and laboratory facilities require more than continuous temperature and humidity monitoring. They also need controlled review workflows, traceable records, and secure approval processes for critical environmental data.
This Stability Chamber Monitoring System demonstrates how AdiLogiX SCADA provides centralized monitoring of multiple stability chambers while adding a structured data review and approval workflow with digital signatures.
The solution enables operators to monitor multiple chambers, review recorded data, create customized review processes, and digitally sign completed reviews. This provides a more structured and traceable approach to stability chamber data management while supporting features aligned with 21 CFR Part 11 requirements.
The Client’s Challenges
Challenge
- Multiple stability chambers requiring centralized monitoring
- Need to monitor multiple channels across each chamber
- Manual review of temperature and humidity records
- Difficulty maintaining a consistent review and approval process
- Need for traceability when reviewing critical environmental data
- Manual approval processes creating additional administrative effort
- Requirement for secure electronic approval and digital signatures
- Difficulty obtaining a clear overview of pending and completed reviews
- Need for controlled access to reviewed data and approval records
- Requirement to support electronic-record and electronic-signature practices
Impact on Operations
- Increased time spent manually reviewing chamber data
- Risk of inconsistent review procedures between operators
- Limited visibility into the current status of data reviews
- Greater administrative effort for approval and record management
- Difficulty tracking who reviewed and approved critical records
- Reduced efficiency when managing multiple stability chambers simultaneously
- Increased risk of delayed responses to alarms, deviations, or out-of-specification conditions
- Greater difficulty maintaining complete, accurate, and audit-ready review records
Our Approach
We implemented an AdiLogiX SCADA–based Stability Chamber Monitoring System with centralized monitoring and a structured review workflow.
The solution was designed around four key capabilities:

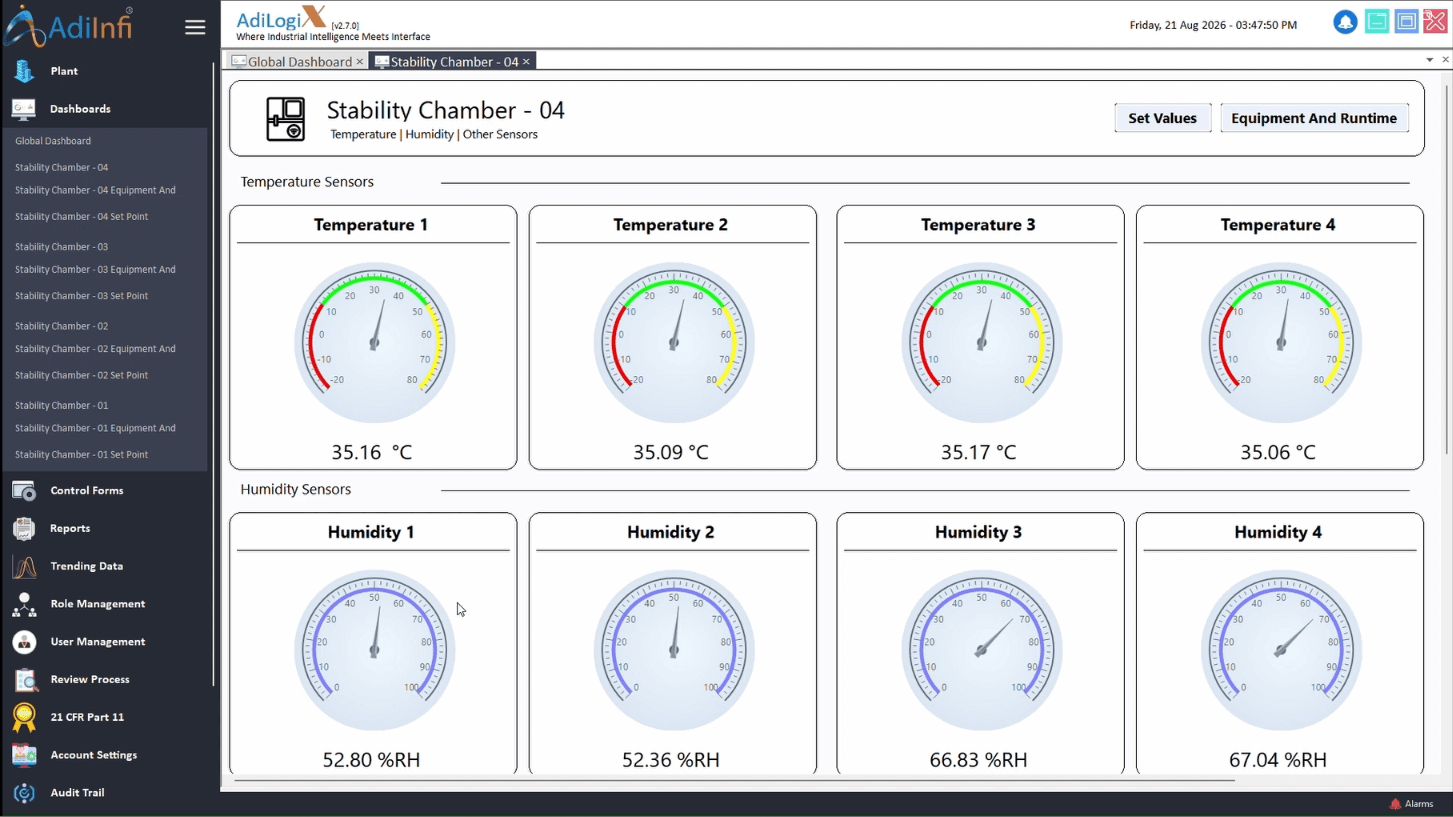

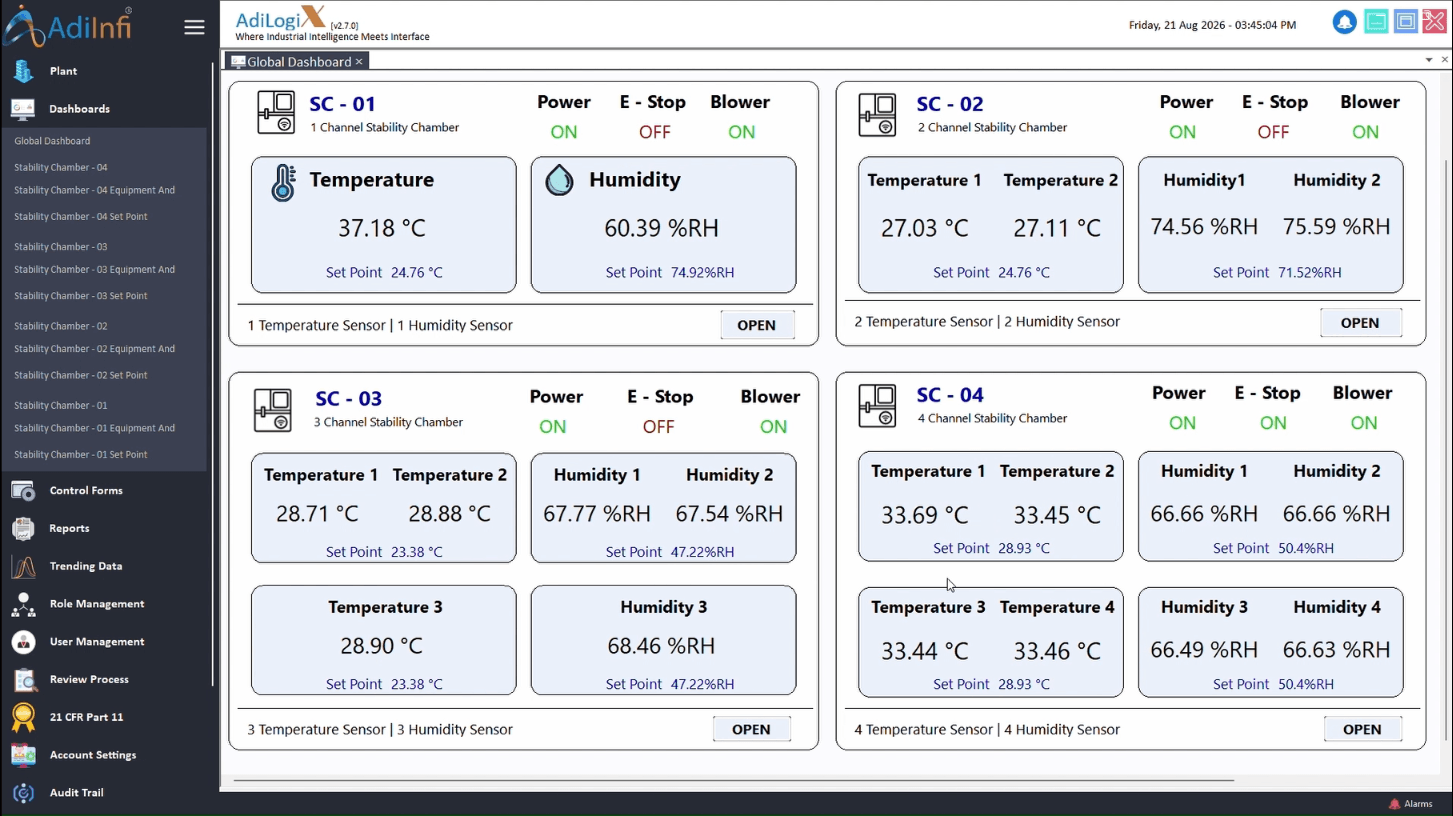

Multi-Channel Stability Chamber
AdiLogiX SCADA provides centralized monitoring for multiple stability chamber channels.
The system can be organized to monitor Channel 1, Channel 2, Channel 3, and Channel 4, allowing operators to view critical chamber parameters from a centralized interface.
Operators can monitor parameters such as:
- Temperature, Humidity
- Chamber status
- Alarm & Operating conditions

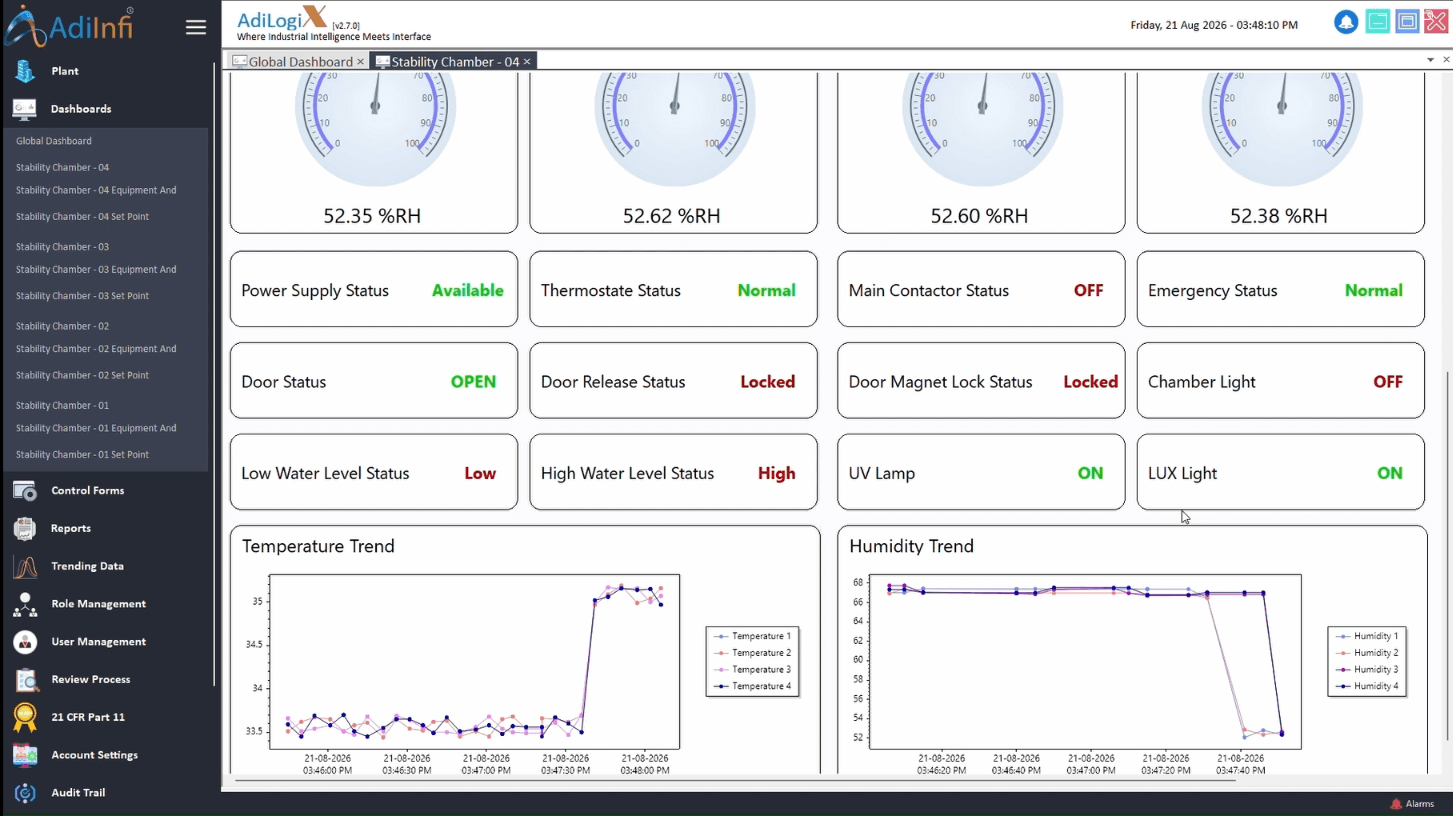

- Historical data and trends
This provides a unified view of multiple stability chamber channels instead of requiring operators to check each chamber independently.

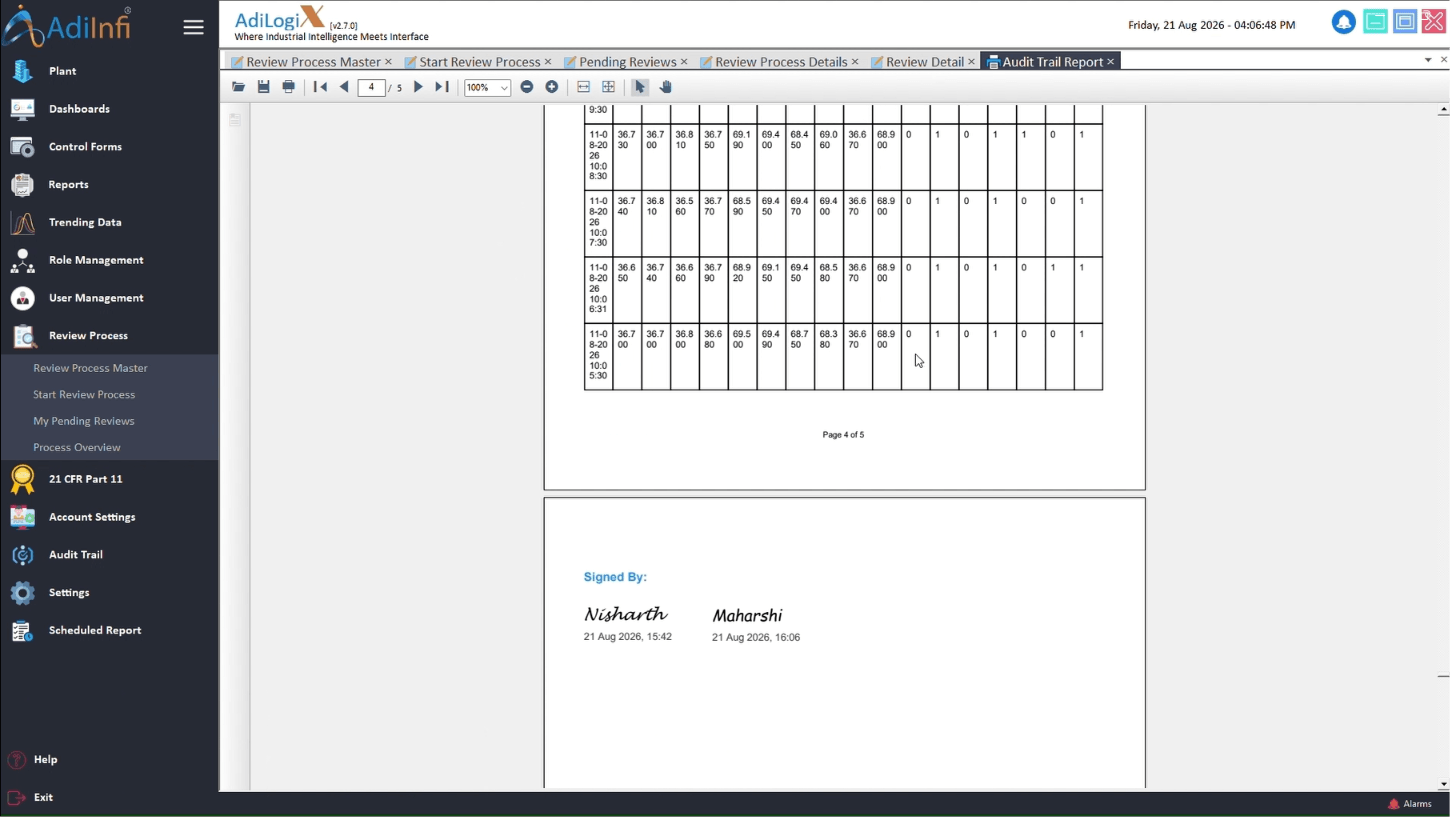

Digital Signature
Digital signatures provide a controlled electronic approval step within the review process.
Once the required data has been reviewed, an authorized user can complete the approval using a digital signature.
The workflow helps associate the review and approval activity with the responsible user, creating better traceability for electronic records.
This functionality is particularly important for pharmaceutical and laboratory environments where controlled review and approval of critical data are required.

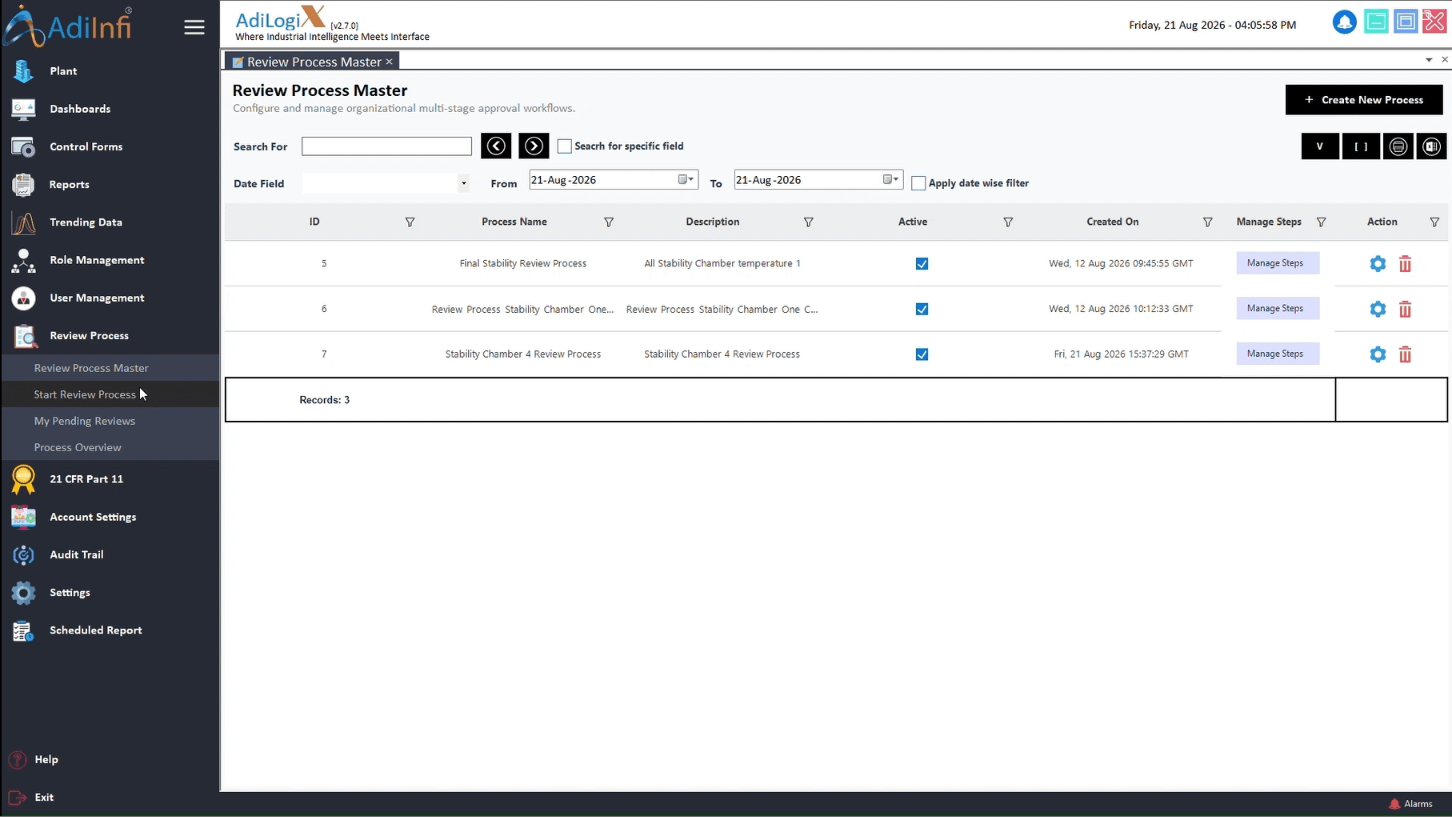

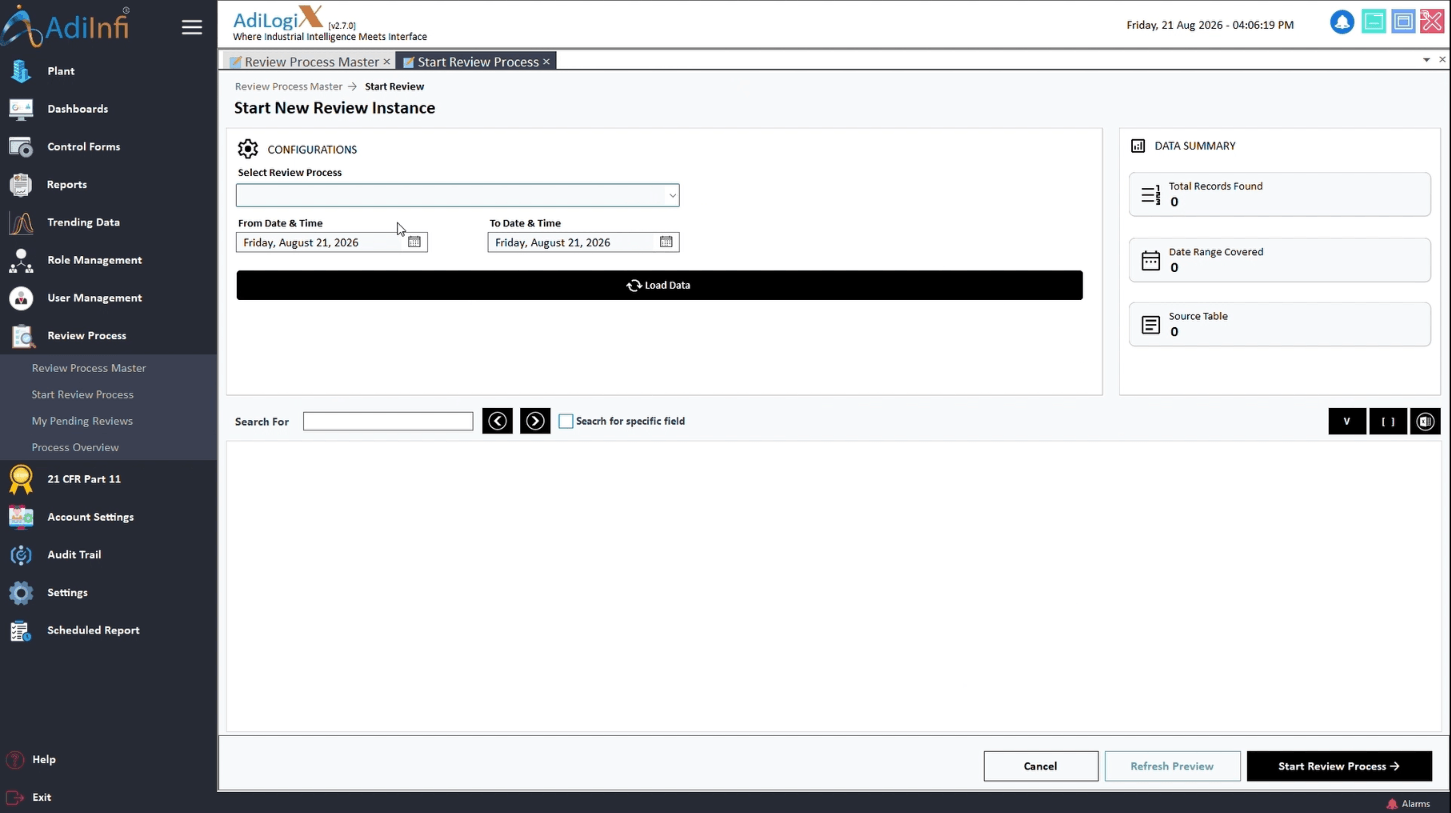

Custom Review Process Creation
A customized review process can be created according to the organization’s operational workflow.
Instead of relying only on manual record checking, the system provides a structured process for reviewing collected stability chamber data.
The review workflow can be organized around stages such as:
Data Collection → Data Review → Verification → Digital Signature → Completed Review
This allows the organization to establish a consistent process for reviewing critical environmental records.

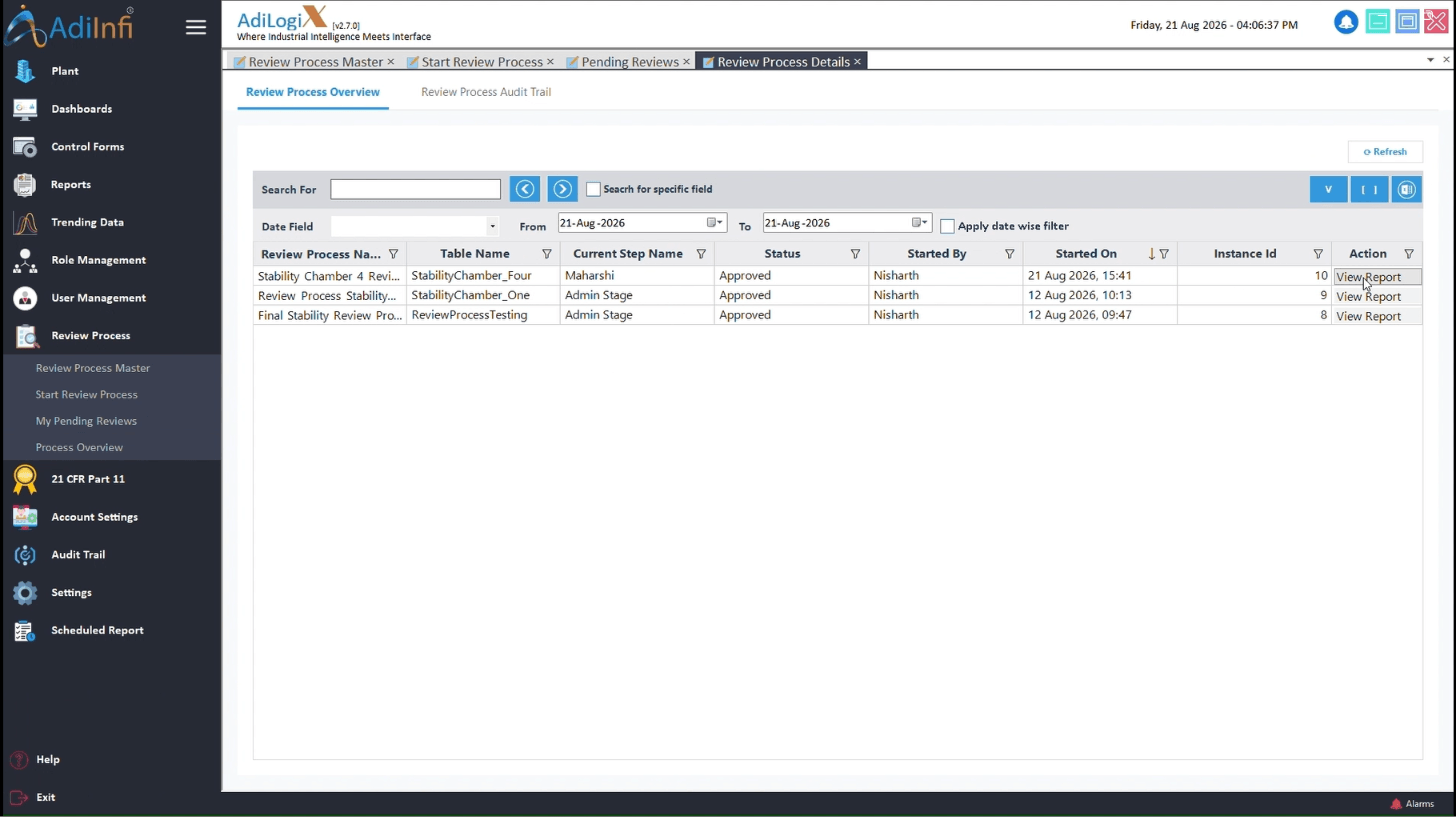

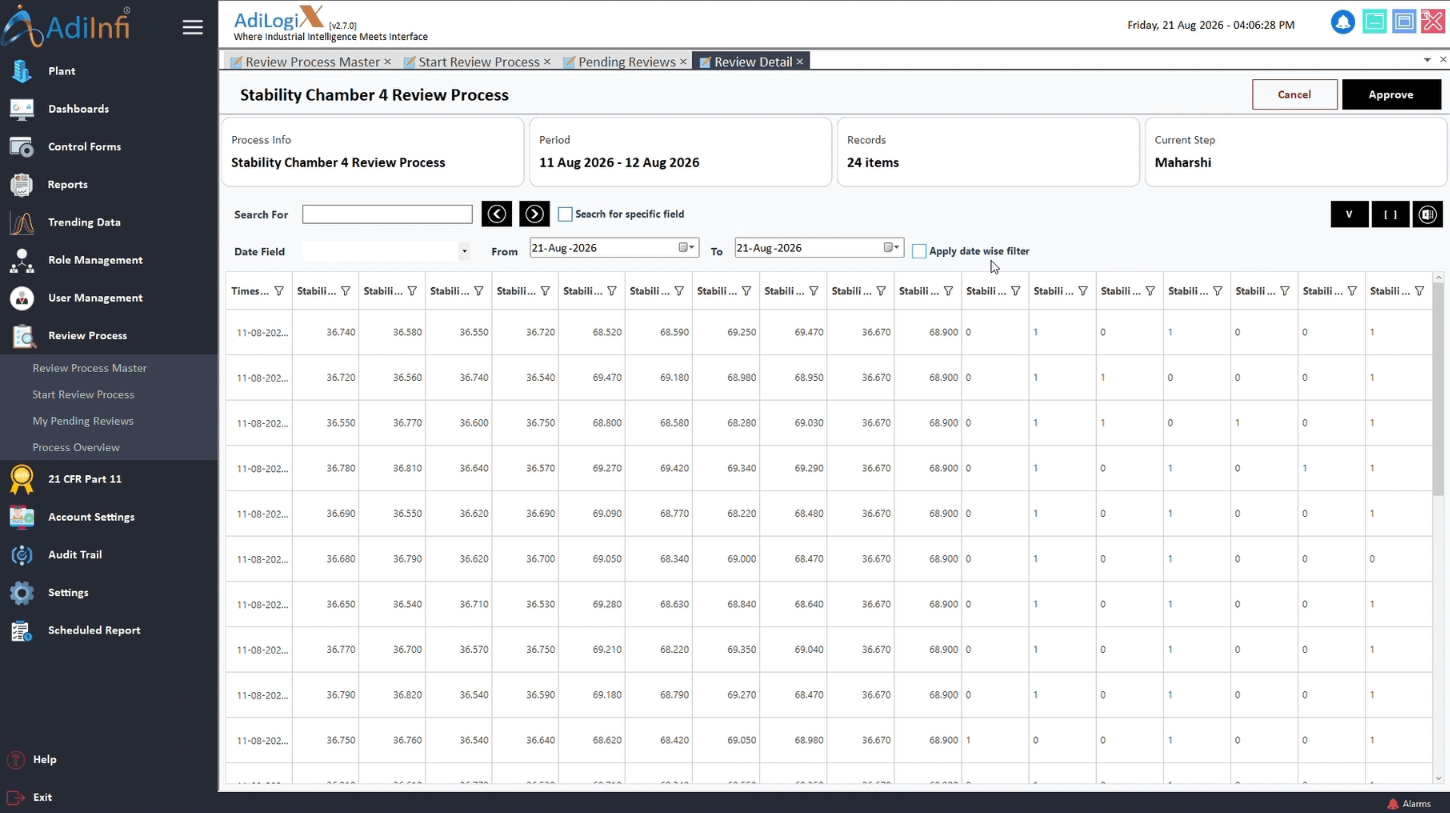

Review Process Overview
A dedicated review overview provides visibility into the status of review activities.
Users can quickly understand which records are:
- Pending review
- Under review
- Awaiting approval
- Digitally signed
- Completed
This gives quality and operations teams a centralized view of the review process and reduces the need to manually track approval status.
Results Achieved
Benefit
- Centralized monitoring of multiple stability chamber channels
- Monitoring of Channel 1, 2, 3, and 4 from a unified SCADA environment
- Structured and customizable data review processes
- Digital signature capability for electronic approval
- Centralized review process overview
- Reduced manual review and approval effort
- Improved visibility into review status
- Better traceability of review and approval activities
- Historical data and trend availability for analysis
Impact
- More consistent stability chamber data review
- Improved visibility of the complete review lifecycle
- Reduced dependency on manual approval tracking
- Faster identification of pending reviews
- Better traceability of electronic review activities
- Improved coordination between operations and quality teams
- More structured electronic record and approval management
Why AdiLogiX SCADA for Stability Chamber Monitoring?
- Multi-Channel Stability Chamber Monitoring
Monitor multiple stability chambers and channels from a centralized SCADA platform with real-time visibility of temperature, humidity, chamber status, and alarms. - Custom Review Process
Create structured and customizable review workflows for consistent data review, verification, and approval. - Digital Signature & Electronic Approval
Enable authorized users to digitally sign reviewed records, providing a controlled electronic approval process with improved traceability. - Review Process Overview
Get a centralized overview of pending, ongoing, awaiting approval, digitally signed, and completed review activities. - 21 CFR Part 11–Related Support
Support electronic record and electronic signature workflows through controlled review processes and digital signatures, subject to appropriate configuration, validation, and organizational procedures. - Historical Data & Trend Analysis
Store and analyze historical stability chamber data to support data review, performance evaluation, and operational traceability.
Multi-Channel Monitoring
Custom Review Workflow
Digital Signature
Review Process Overview
Historical Data & Trends
Alarm & Event Management
Industrial Communication Support in AdiLogiX SCADA
AdiLogiX SCADA supports industrial communication interfaces that enable integration with:
- Stability chamber controllers and environmental monitoring systems
- Temperature and humidity sensors
- PLCs and automation controllers
- Data acquisition and monitoring devices
- HVAC and environmental control systems
- Alarm and notification systems
- Other industrial devices used for facility and environmental monitoring
This enables AdiLogiX SCADA to serve as a centralized stability chamber monitoring platform, providing real-time environmental visibility, historical data logging, trend analysis, alarm management, structured review workflows, and digital signature-based approval processes across connected chambers.
The integrated platform helps organizations manage multi-channel stability chamber monitoring, data review, electronic approval, and review status tracking from a centralized SCADA environment.
Conclusion
The Stability Chamber Monitoring System using AdiLogiX SCADA goes beyond basic environmental monitoring by combining multi-channel chamber monitoring with structured data review and digital approval workflows.
With support for custom review process creation, digital signatures, review process overview, historical data, alarms, and centralized monitoring, the solution provides a more controlled approach to stability chamber data management.
For pharmaceutical and laboratory applications, these capabilities can support organizations in establishing structured electronic review and approval processes aligned with 21 CFR Part 11–related requirements, subject to appropriate system configuration, validation, procedures, and organizational controls.
